Engineering

SBC001 | SCC001 | SDC001

S240 | S90 | S36 | S36s

Vacuum Pump

Gear Pump

Hydraulic Cutter ​

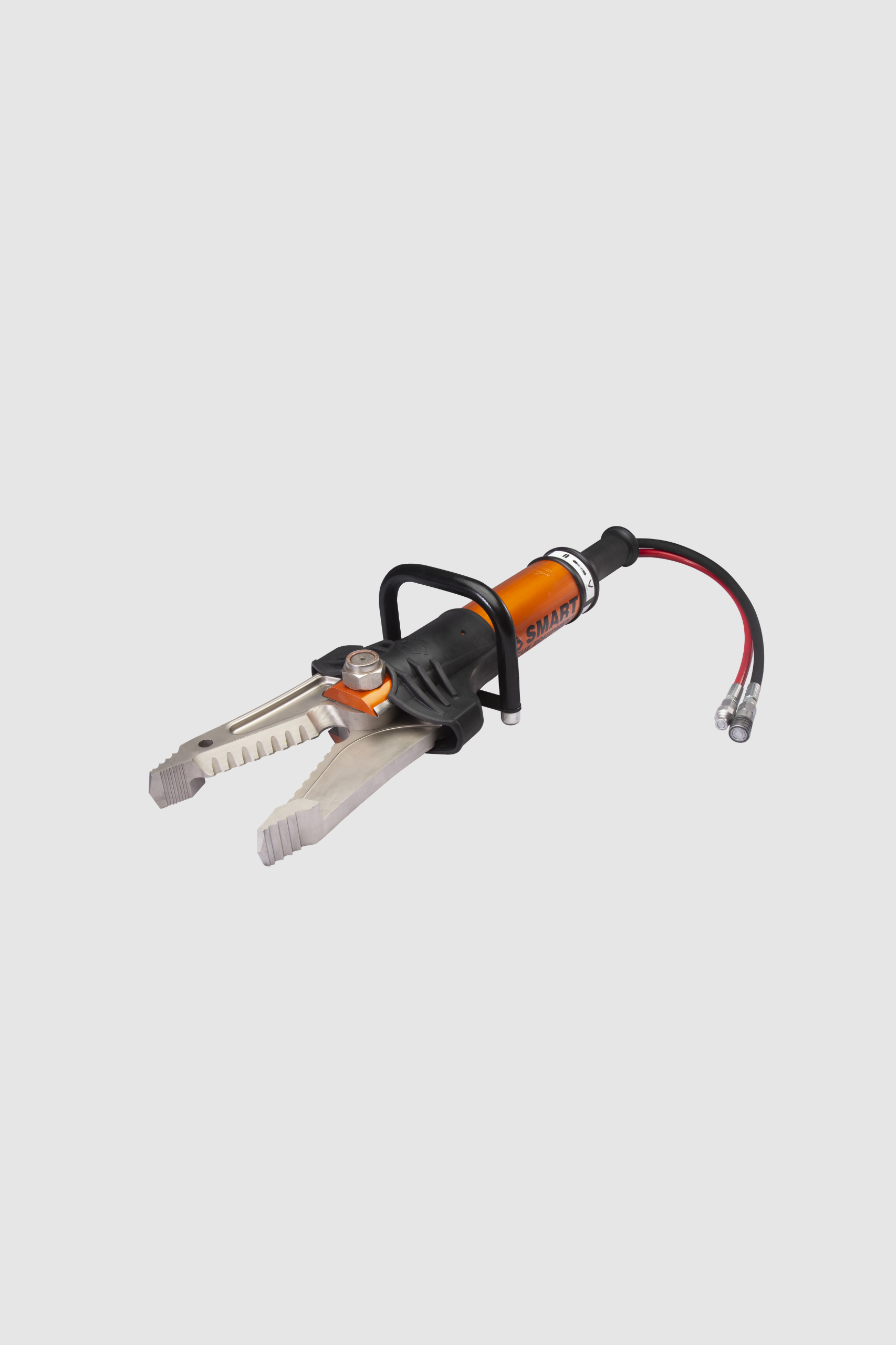

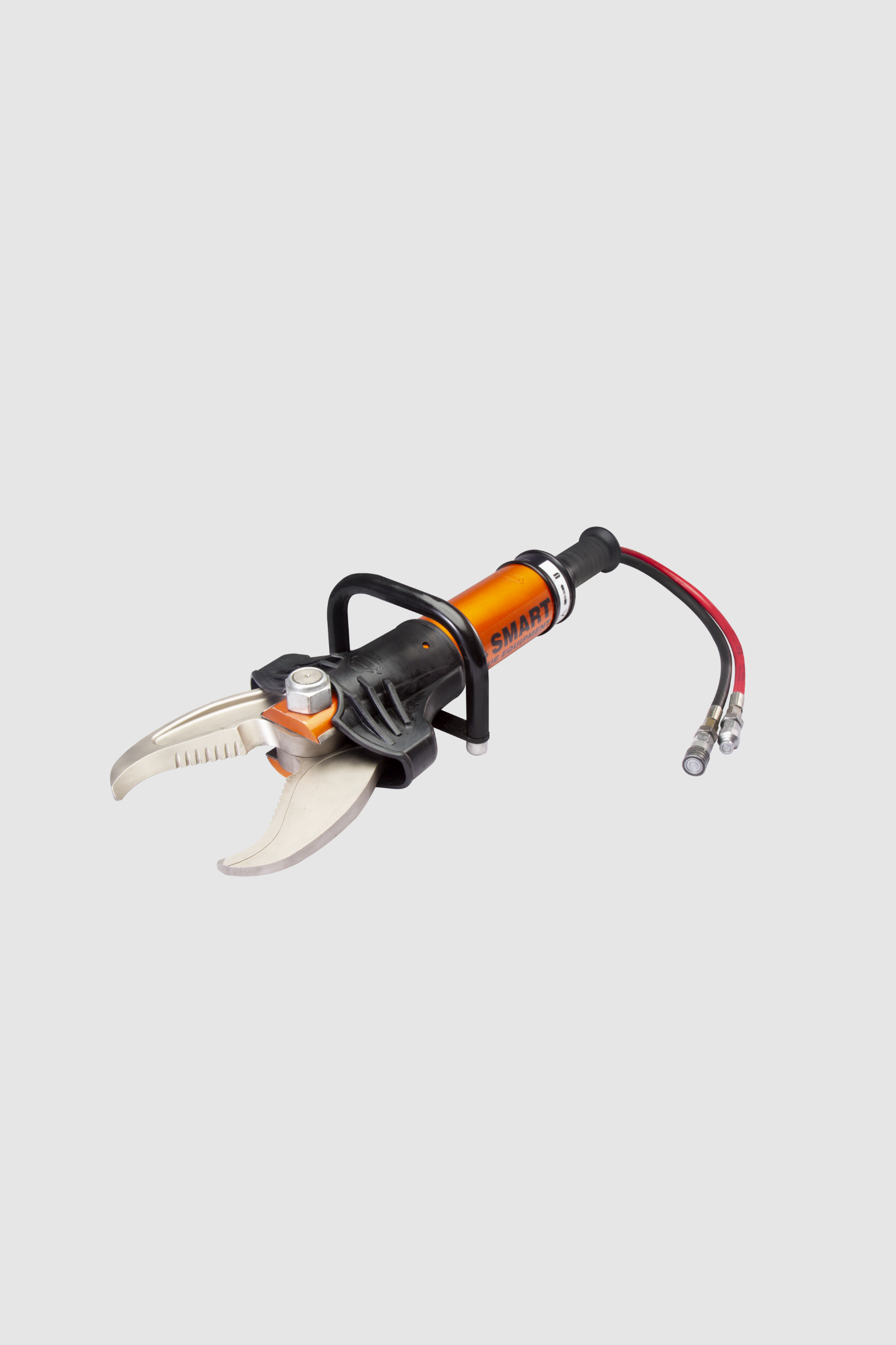

Hydraulic Cutter

Hydraulic cutters are versatile tools used across various industries for cutting through strong materials like metal, cables, or concrete.

Various models are available in straight type & C-Type Cutter with the blade range from 190 mm to 240 mm

  • Hydraulic Cutter

    Product Specifications:

    Model : SBC001

    En Class : BC12E3E4E5

    Blade Opening (mm) : 190

    Cutting Force (KN) : 144

    Capable of Cutting
    Round Bar (mm) : 22

    Wrossure (Bar) : 720

    Weight (Kg) : 16

    Hydraulic Cutter

  • Hydraulic Cutter

    Product Specifications:

    Model : SCC001

    En Class : CC1E2E3E4E5

    Blade Opening (mm) : 210

    Cutting Force (KN) : 427

    Capable of Cutting Round
    Bar (mm) : 22

    Wrossure (Bar) : 720
    Weight (Kg) : 16

    Hydraulic Cutter

  • Hydraulic Cutter

    Product Specifications:

    Model : SDC001

    En Class : DC1E2E3E4E5

    Blade Opening (mm) : 240

    Cutting Force (KN) : 560

    Capable of Cutting Round
    Bar (mm) : 40 - 45

    Wrossure (Bar) : 720

    Weight (Kg) : 16

    Hydraulic Cutter

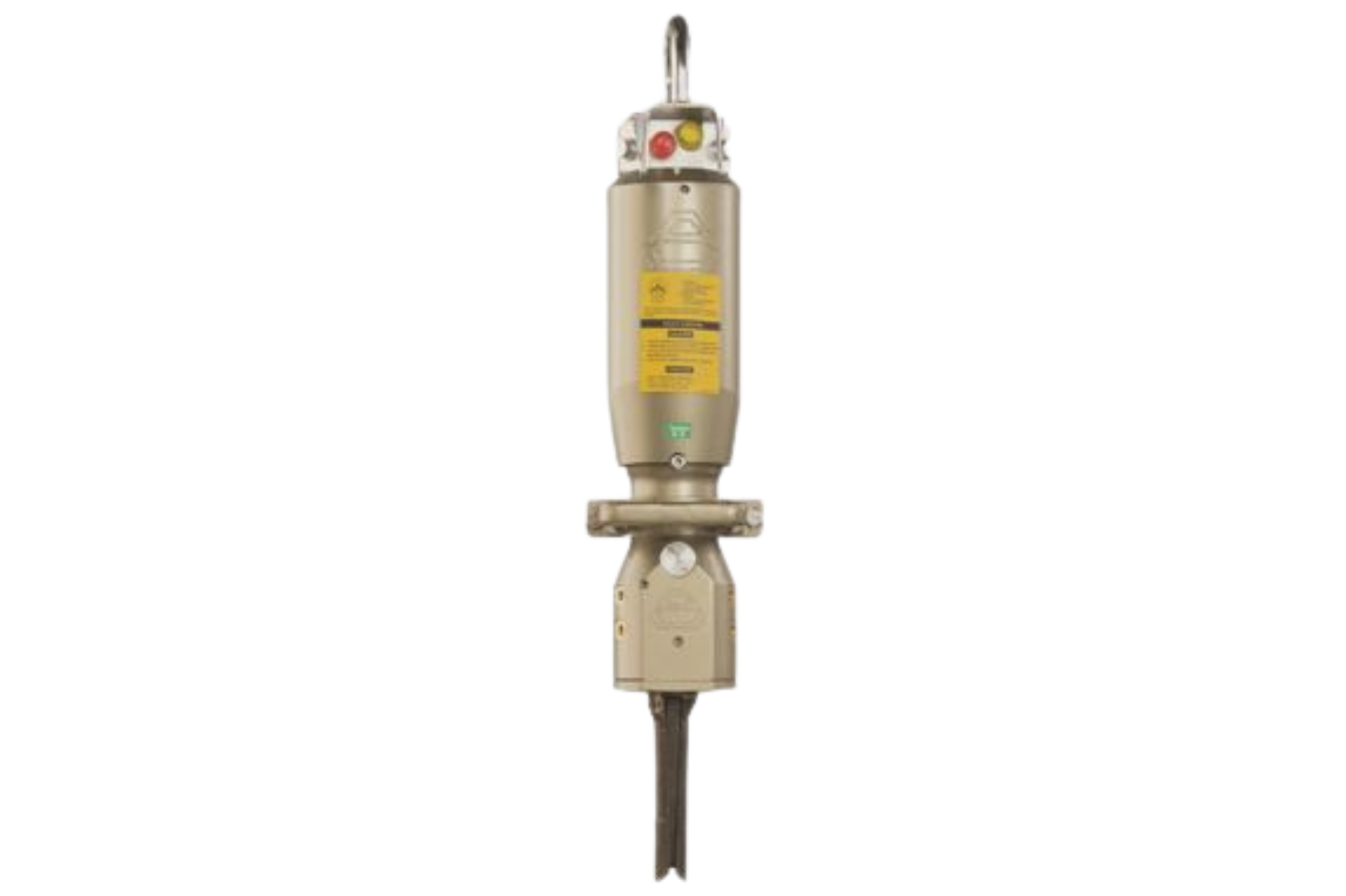

Hydraulic Splitter ​

Hydraulic Splitter

Rock splitter with high strength steel and aluminum cylinder material. It can be used for horizontal as well as vertical positions.

Available in various models with drill hole depth capacity from 320 to 610 mm depth.

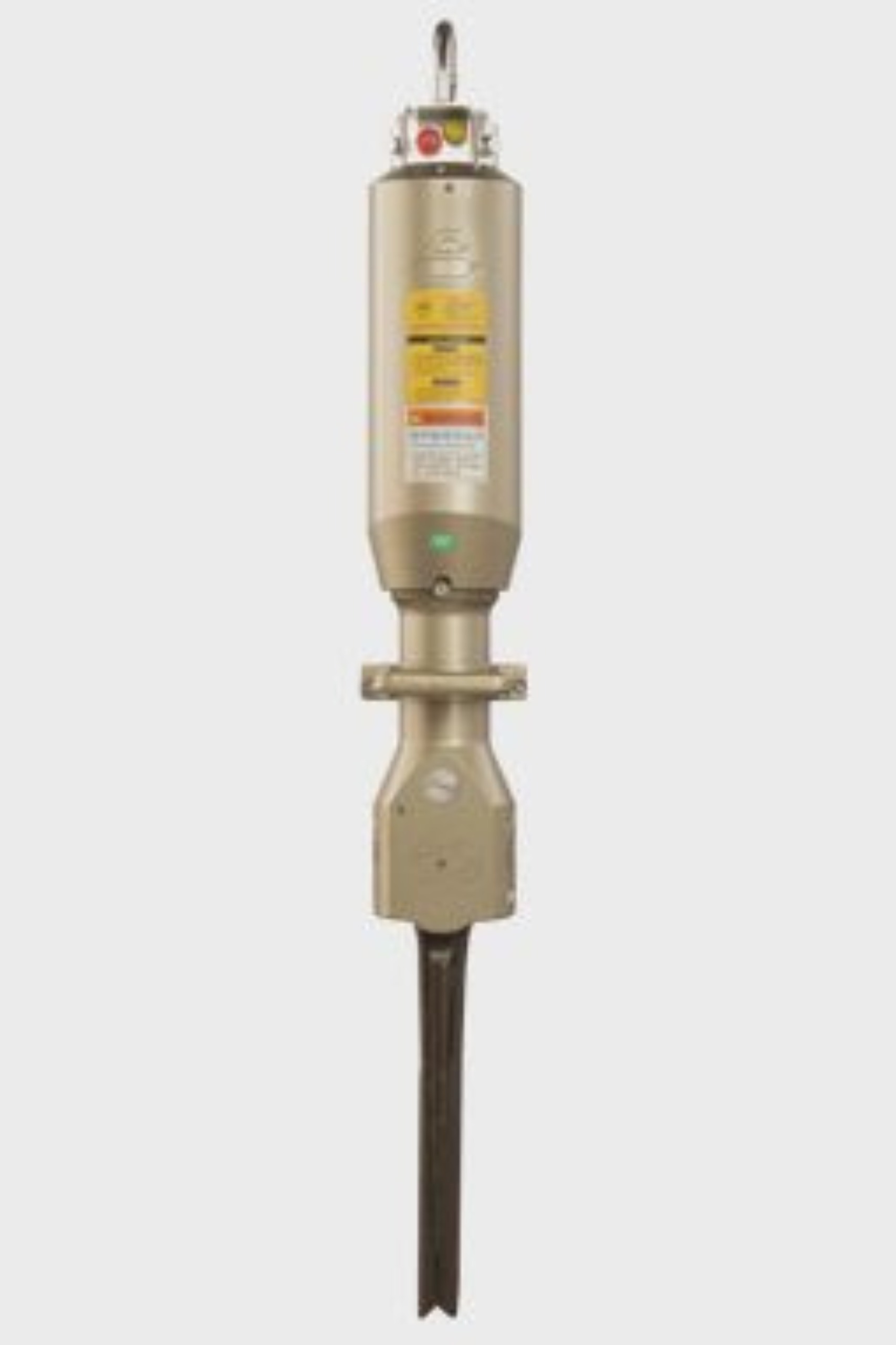

  • Hydraulic Splitter - S240

    Product Specifications:

    Model : S240

    Types of Wedge Set : R

    Drill Hole Diameter (mm)) : 48-50

    Drill Hole Depth (mm) : 610

    Splitting Distance (mm) : 20-50

    Splitting Force (kN/ton) : 4950/505

    Length of Splitter (mm) : 1290

    Weight (kg) : 35

    Hydraulic Splitter - S240

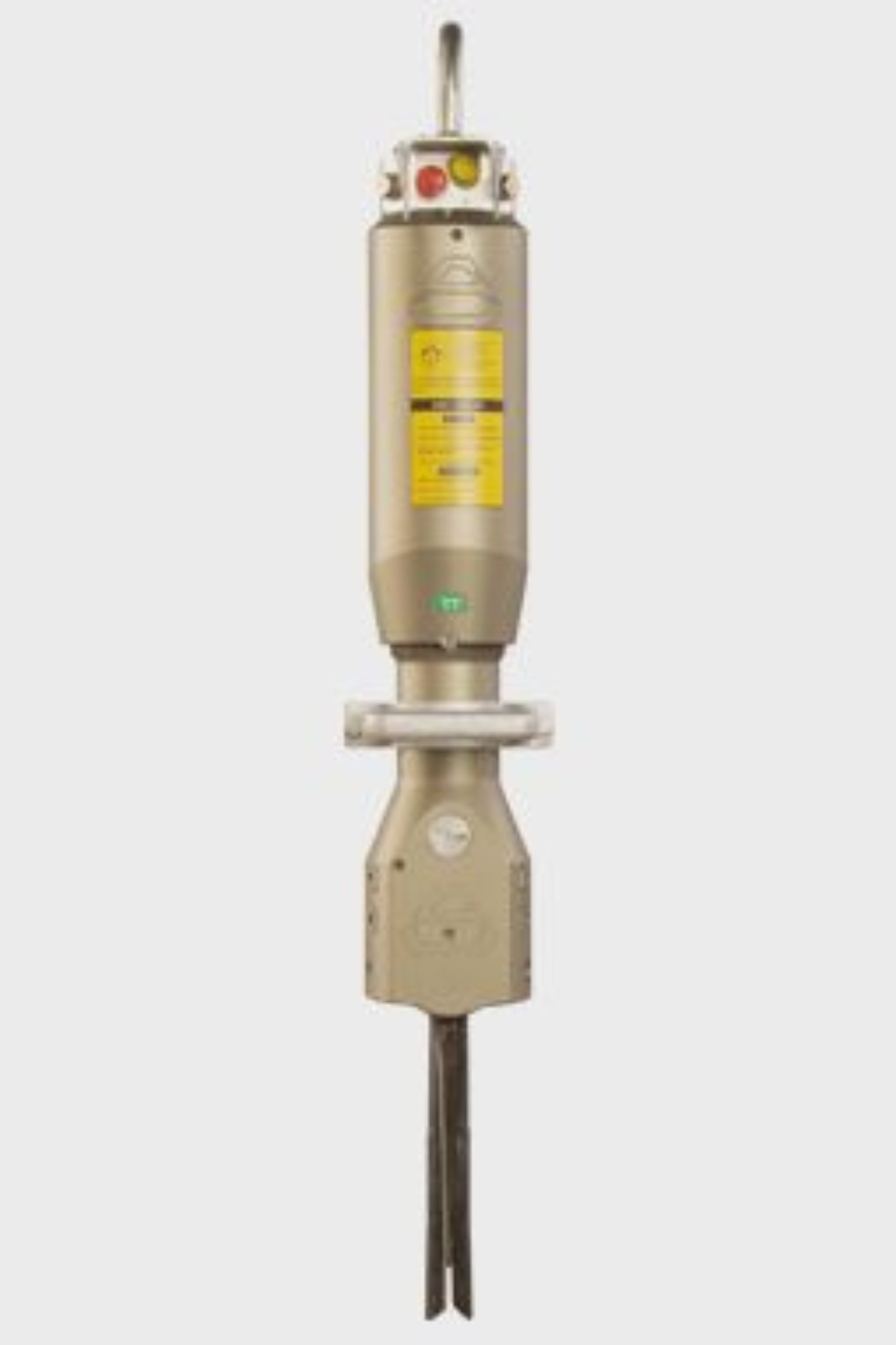

  • Hydraulic Splitter - S90

    Product Specifications:

    Model : S90

    Types of Wedge Set : R

    Drill Hole Diameter (mm)) : 48-50

    Drill Hole Depth (mm) : 450

    Splitting Distance (mm) : 18-55

    Splitting Force (kN/ton) : 3500/358

    Length of Splitter (mm) : 1190

    Weight (kg) : 24

    Hydraulic Splitter - S90

  • Hydraulic Splitter - S36

    Product Specifications:

    Model : S36

    Types of Wedge Set : R

    Drill Hole Diameter (mm)) : 40-42

    Drill Hole Depth (mm) : 410

    Splitting Distance (mm) : 15-20

    Splitting Force (kN/ton) : 4525/460

    Length of Splitter (mm) : 995

    Weight (kg) : 22

    Hydraulic Splitter - S36

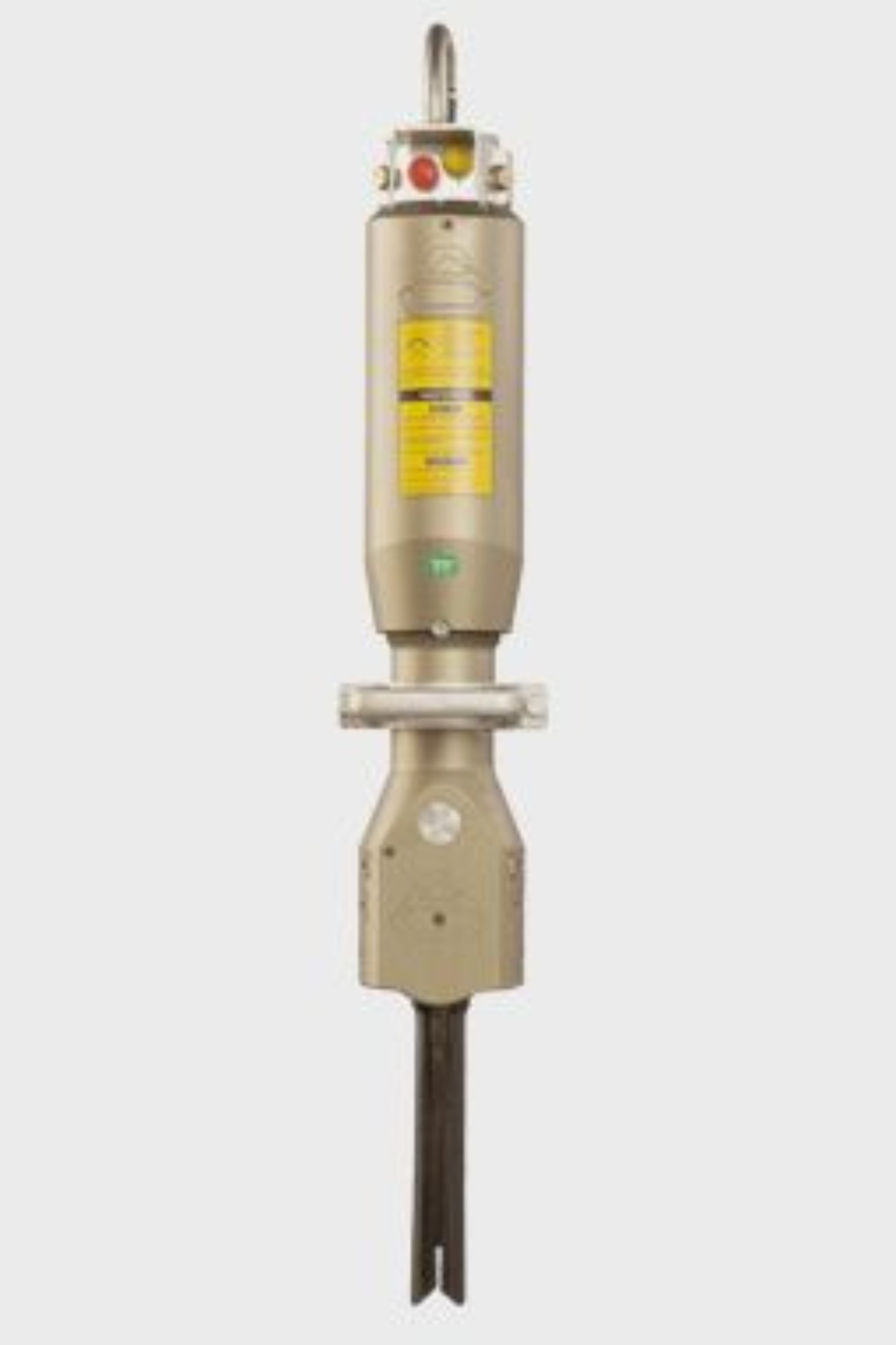

  • Hydraulic Splitter - S36s

    Product Specifications:

    Model : S36s

    Types of Wedge Set : R

    Drill Hole Diameter (mm)) : 36-38

    Drill Hole Depth (mm) : 320

    Splitting Distance (mm) : 10-15

    Splitting Force (kN/ton) : 3190/319

    Length of Splitter (mm) : 800

    Weight (kg) : 18

    Hydraulic Splitter - S36s

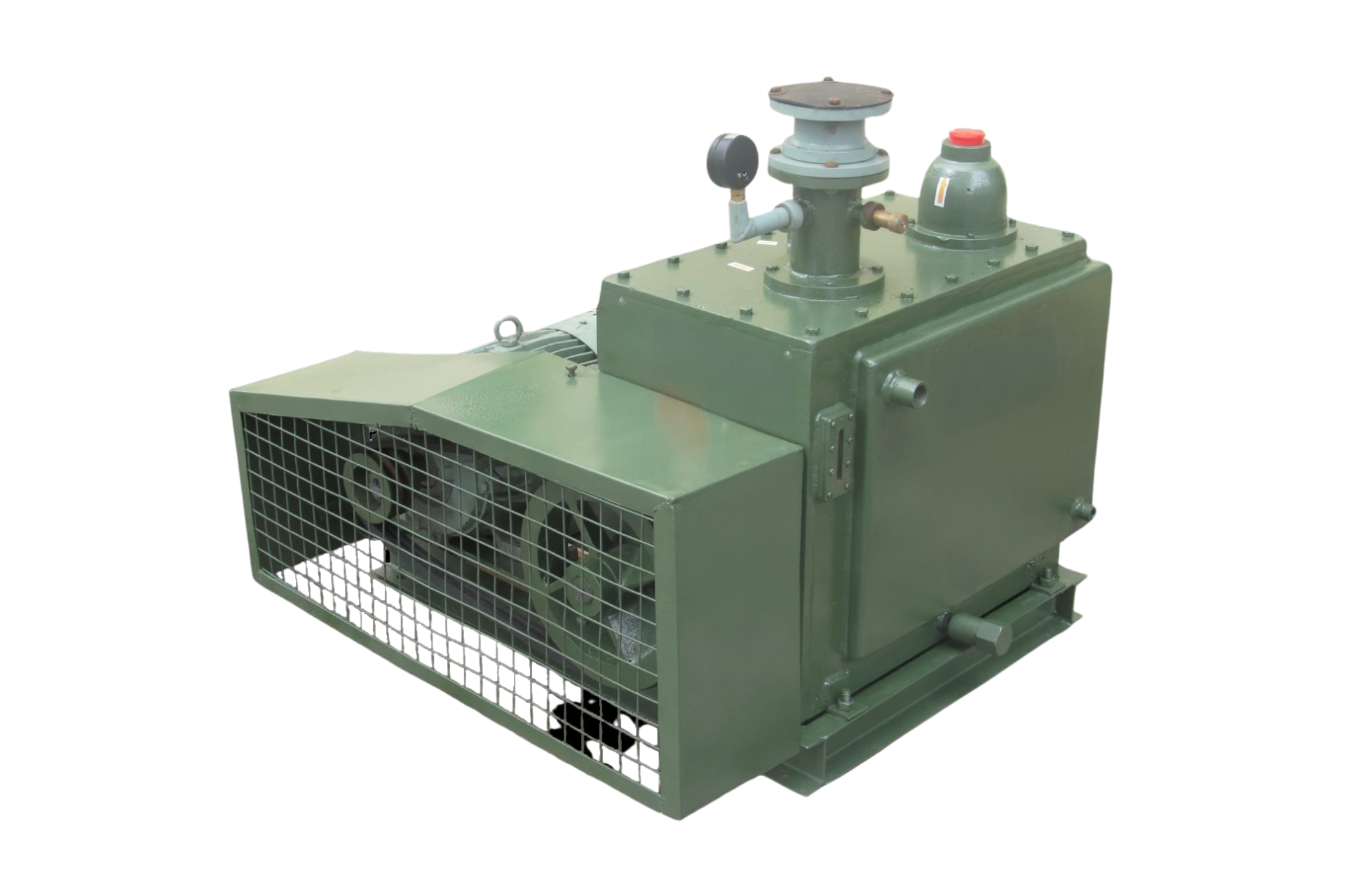

Vacuum Pumps

Vacuum Pump | High Vacuum Pump | Direct Drive Vacuum Pump

We offer an exclusive range of Industrial & Centralized Vacuum Systems which are highly accredited by our National & International clients.

Uses: Chemical, Pharma, Plastic Industries And Cosmetic Industries.

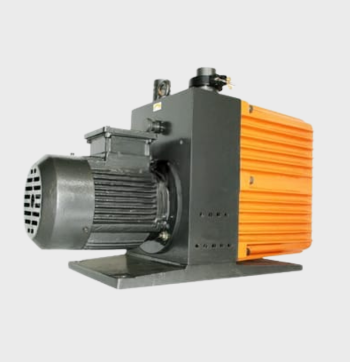

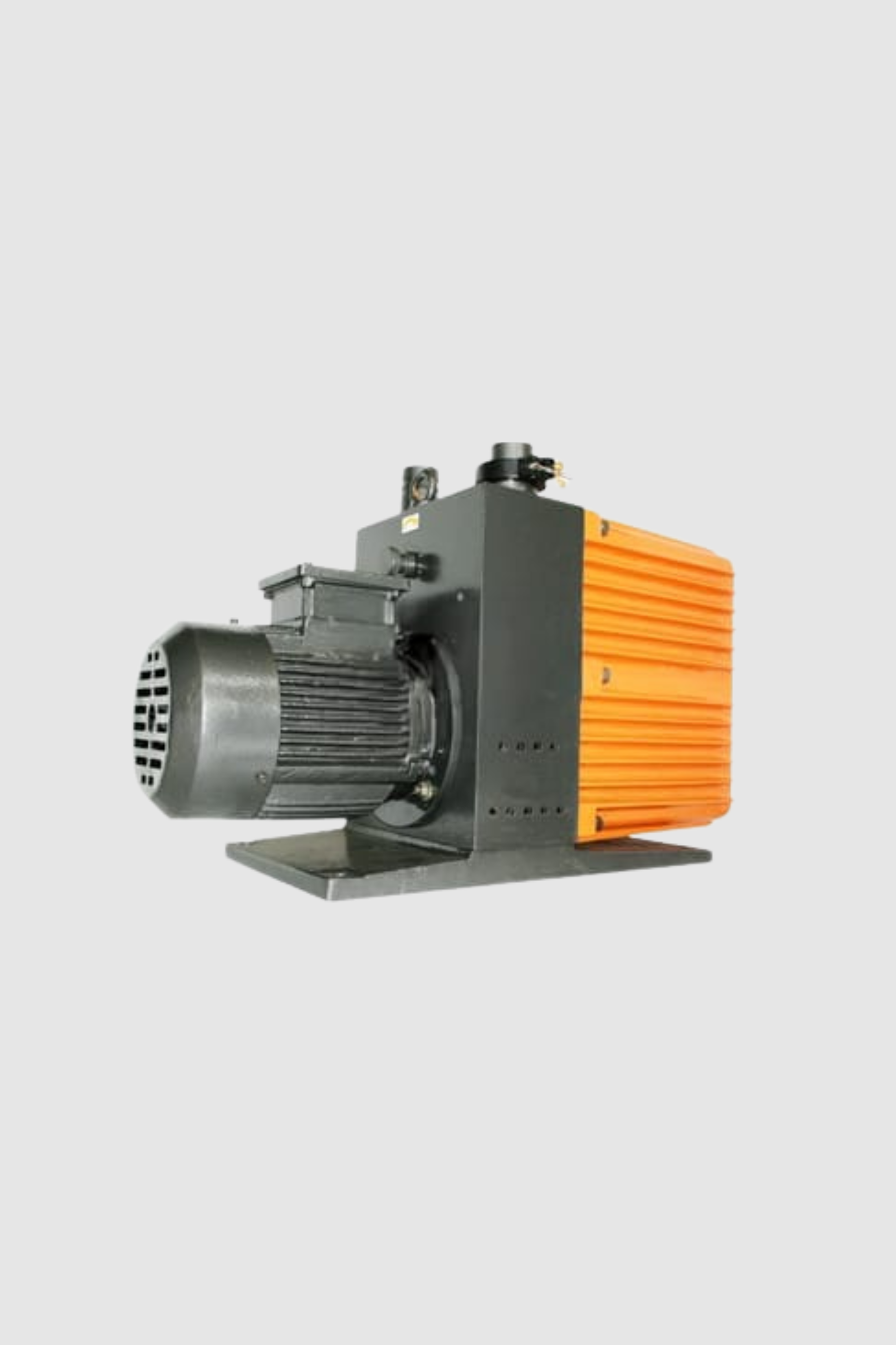

  • Vacuum Pump

    Product Specifications:

    Sturdy And Robust
    High Pumping Speed
    Low Oil Consumption.
    Positive Anti Suck Back & Sealing
    Wide Range : 2 m3/hr. To 900 m3/h
    Silent & Vibration Free.
    High Water Vapour Tolerance
    Built in Gas Ballast Facility.

    Vacuum Pump

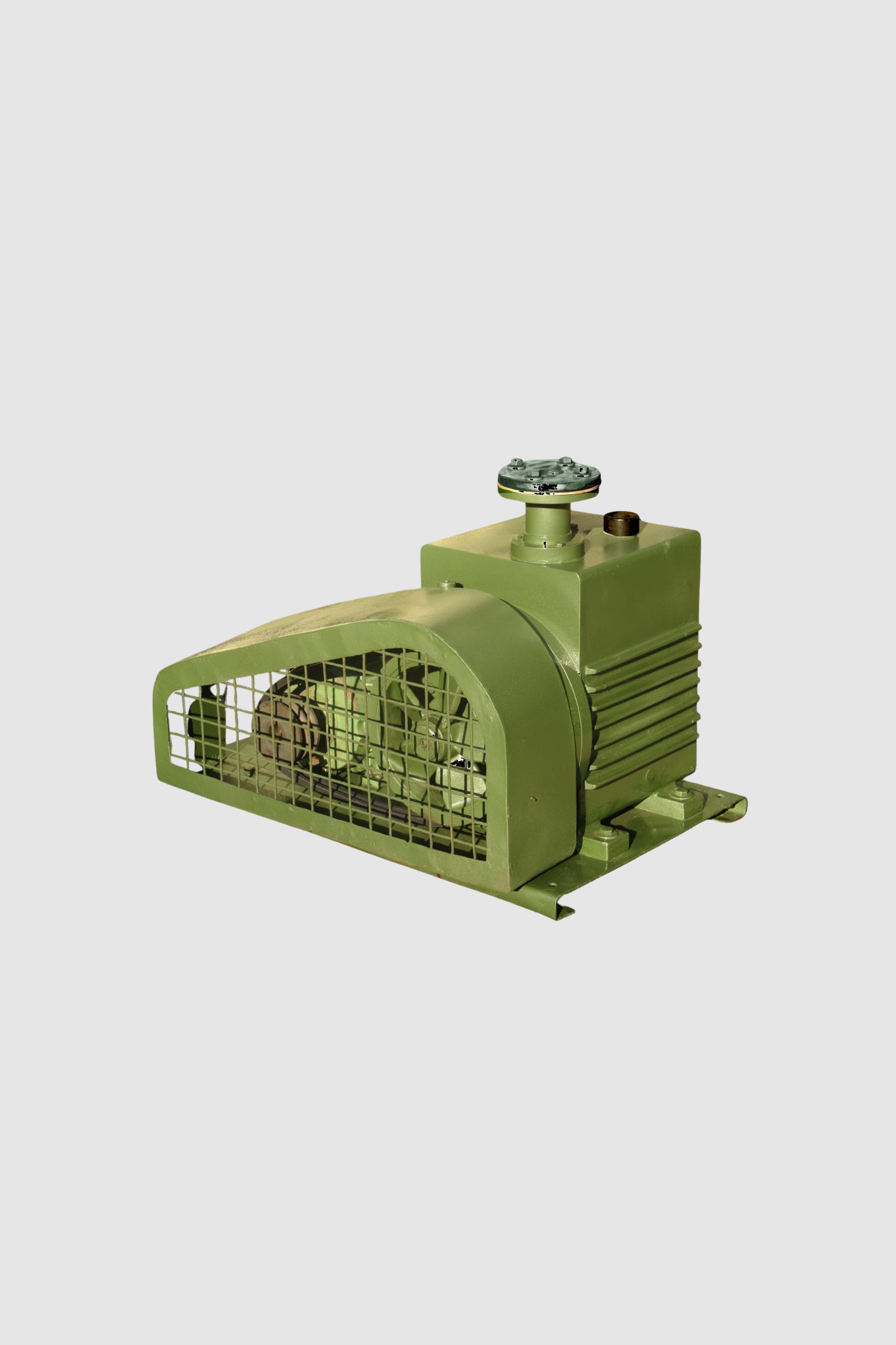

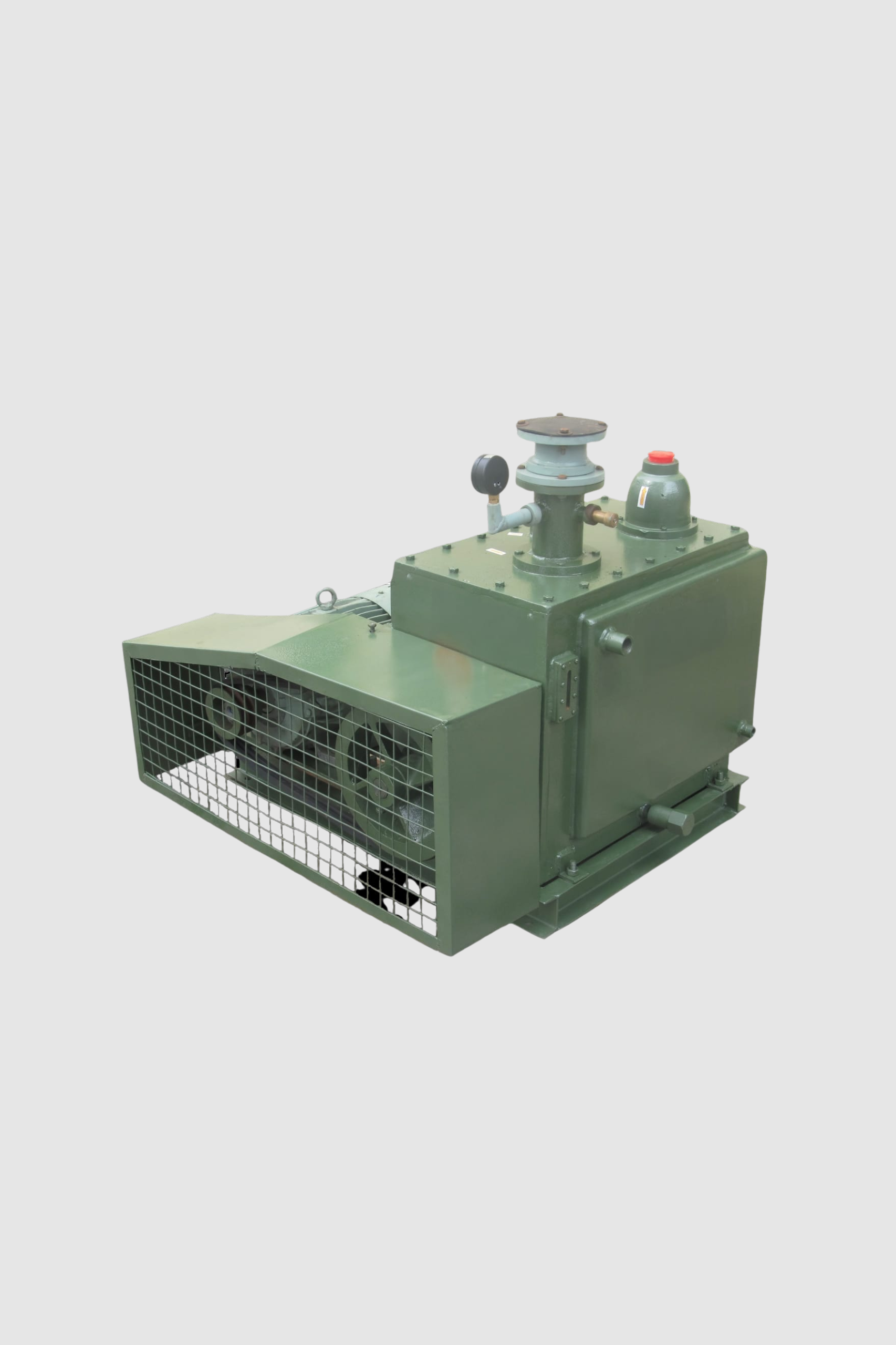

  • High Vacuum Pump

    Product Specifications:

    Sturdy And Robust
    High Pumping Speed
    Low Oil Consumption.
    Positive Anti Suck Back & Sealing
    Wide Range : 2 m3/hr. To 900 m3/h
    Silent & Vibration Free.
    High Water Vapour Tolerance
    Built in Gas Ballast Facility.

    High Vacuum Pump

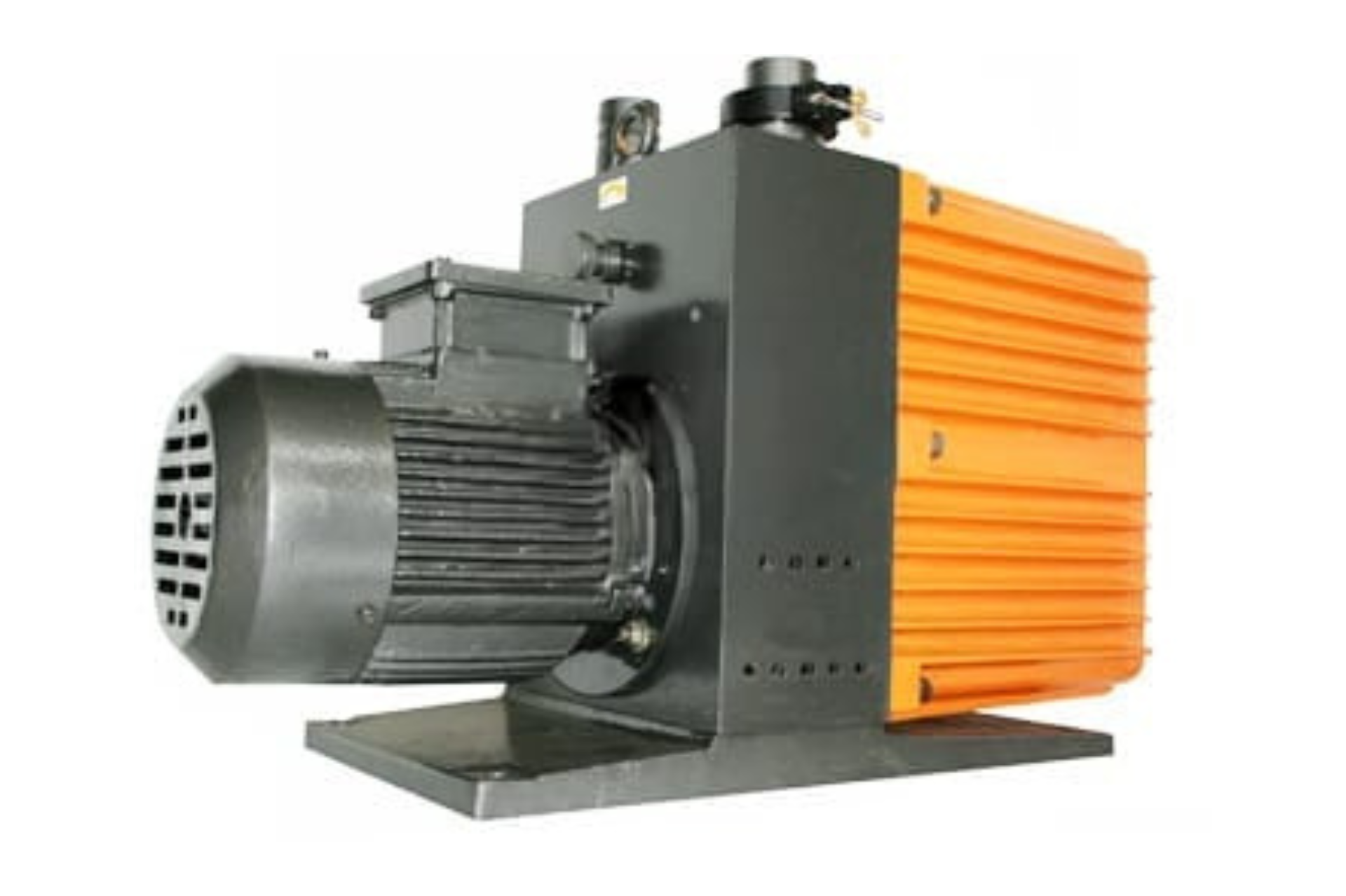

  • Direct Drive Vacuum Pump

    Product Specifications:

    Sturdy And Robust
    High Pumping Speed
    Low Oil Consumption.
    Positive Anti Suck Back & Sealing
    Wide Range : 2 m3/hr. To 900 m3/h
    Silent & Vibration Free.
    High Water Vapour Tolerance
    Built in Gas Ballast Facility.

    Direct Drive Vacuum Pump

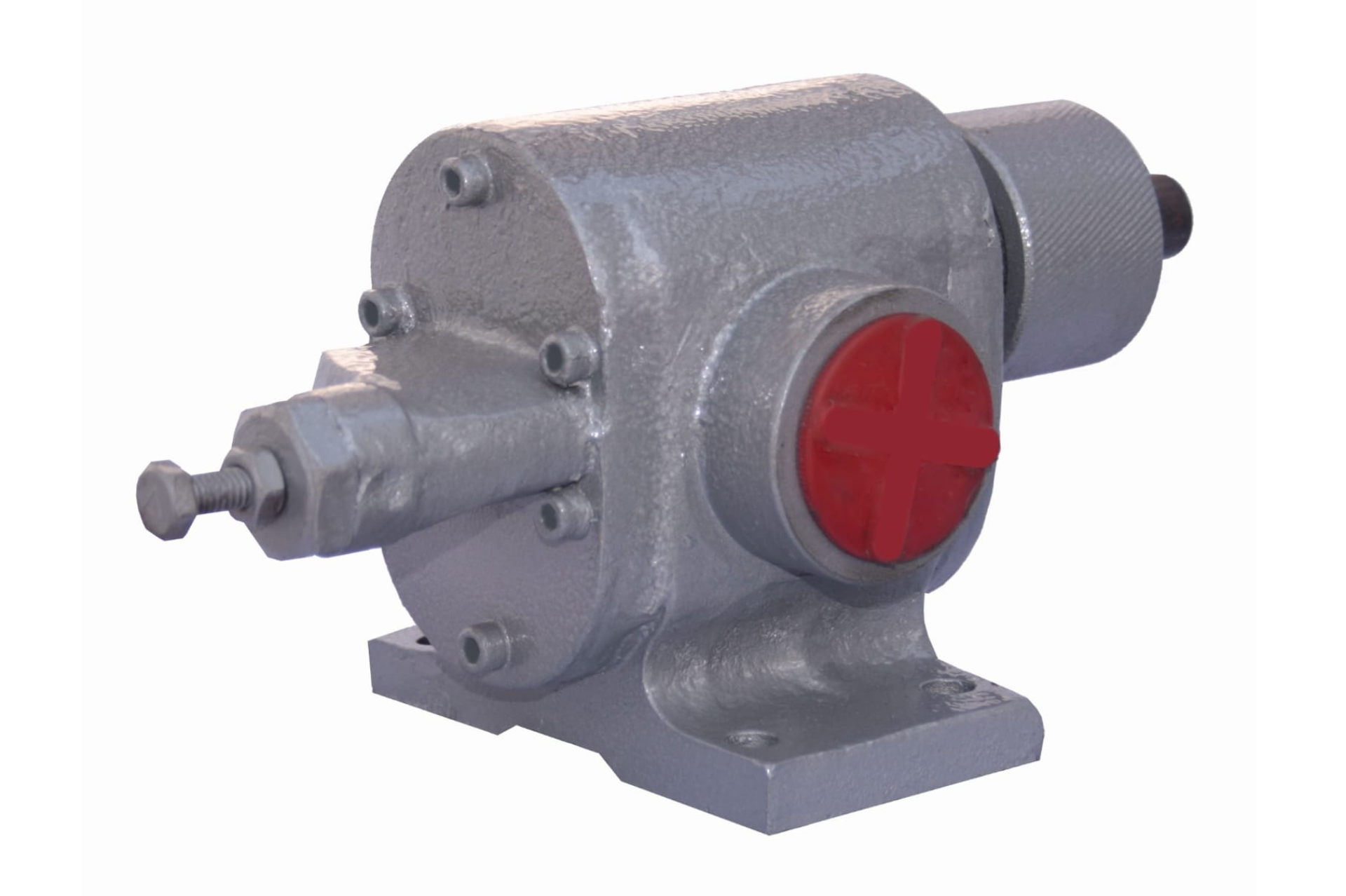

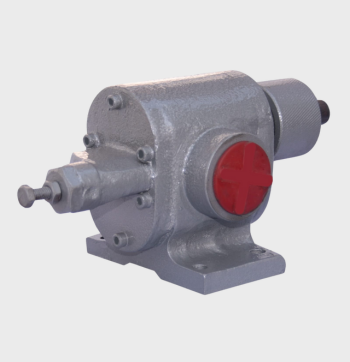

Gear Pumps

Gear Pumps

Simple in design mainly consisting of casing, gears, stuffing box and relief valve. Two gears, either spur or helical type, rotate around fixed centres and thereby suck and entrap the fluid between the teeth of the gears and the casing, and pressurize the same causing fluid with pressure through the discharge port.

Uses : Transfer of Viscous Material Such As Oil, Grease, Varnish, Resins, Paints, Acid, Alkali Solvents, etc. Used in Oil Industry, Cosmetic Industry.

  • Gear Pumps

    Product Specifications:

    The Suction & Discharge Size Ranges from 1/2" upto 5".
    The MOC are available in Graded Cast Iron with EN24 Gears / SS-304 / SS-316 / Hastealloy - C.
    Noise-Free
    Vibration-Free Operation.
    Easy Maintenance & Overhauling.
    Sturdy Construction.

    Gear Pumps
